Model SMC-3

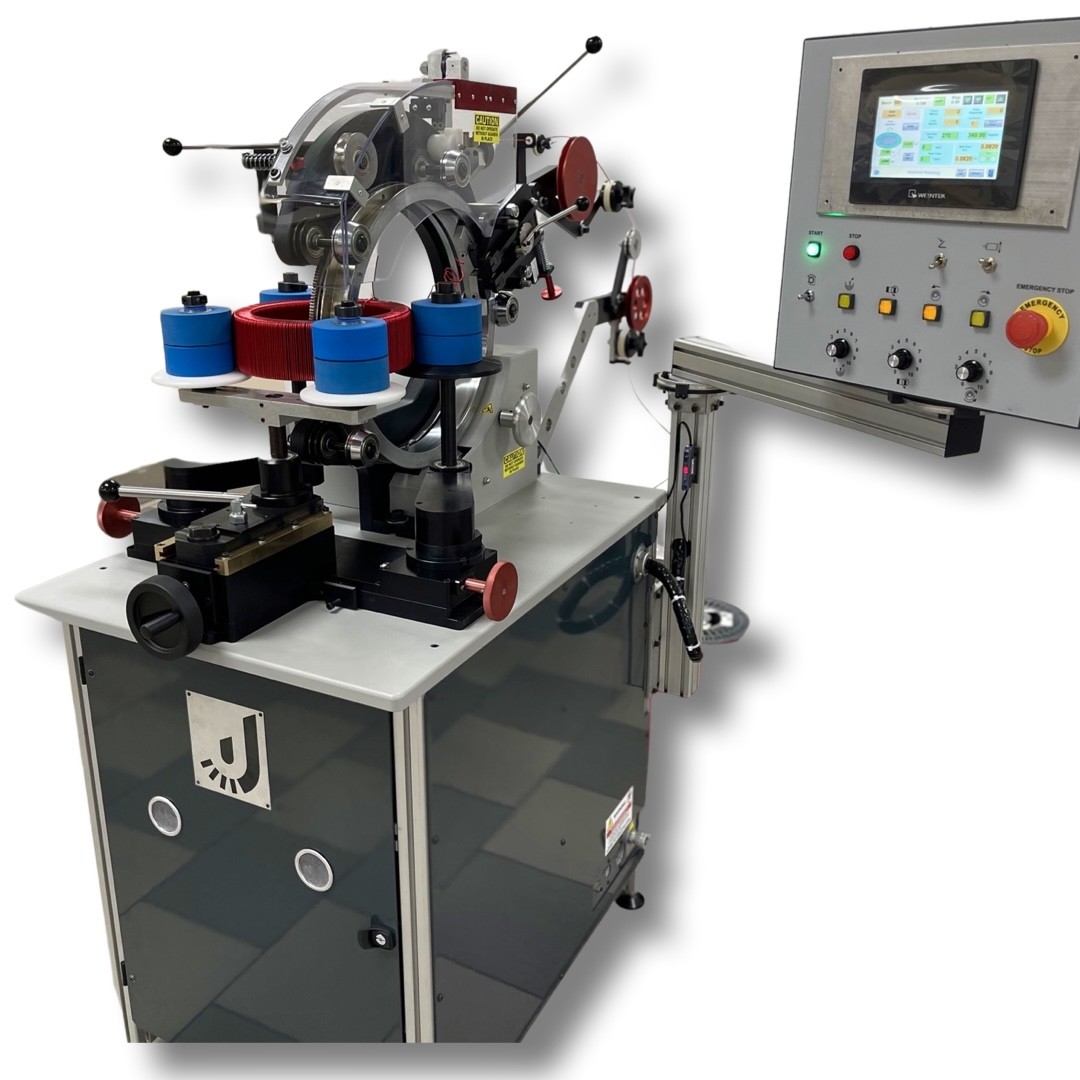

Microprocessor Controlled Toroidal Winding Machine with Windows Software

Full programmability of all winding functions now available in a floor stand machine. Forget about lengthy set-up times. The famous SMC control now allows all winding functions to be programmed for ease of repeatable recall at any time. The SMC-3 is a medium sized floor stand machine for the winding of medium to large size toroidal coils. The ability to accept 4 types of winding heads along with 3 sizes of taping heads makes this machine the most versatile in its class. Core sizes from 3.0 inch (76.2mm) to 17.0 inch (431.3mm). Wire sizes from #38 awg (0.1mm) to #7 awg (3.66mm).

Principal and optional features

Separate speed controls for loading and winding
Programmable stepper motor driven core rotation in either direction with minimum backlash
Programmable wire spacing, from coarse to fine micro-step resolution
Electronic linear pick-up for loading (feet or meters)
Tape head controls
Solid-state microprocessor count controller - total of 99 programmable presets - LED readout - built-in fiber optic turns sensor-program storage- production batch counter - utmost accuracy, stability and reliability
RS-232 with interface software
Quick change winding and taping heads
Automatic core index function
Push button, on-off footswitch or variable footpedal operation
Optional SMC programming software to pre-calculate and download all winding parameters from your PC to the machine
