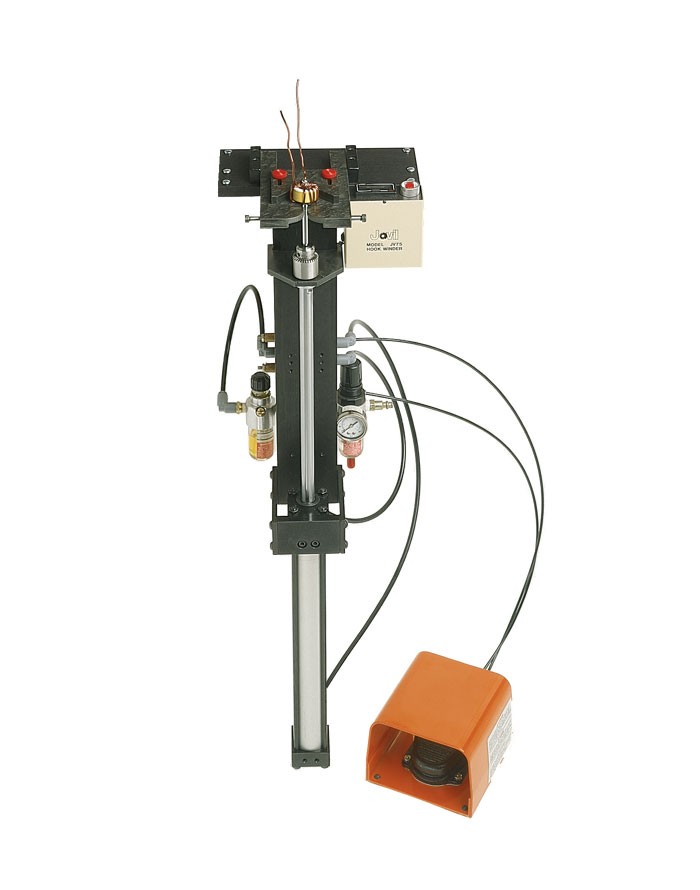

Principal and optional features
- Bench mount
- Air operated with adjustable air pressure
- Electronic counter
- Flip base plate for safety
- Easy to operate
- Minimum core O.D. – 3/8" (10 mm)
- Minimum core I.D. – 3/16" (5 mm)
- Maximum wire size #12 AWG (2.0 mm)
- 4 standard needle sizes with specials available
- 2 standard core plates with specials available
Specifications/Capabilities
NEEDLE: 1⁄8" (4 mm), 3⁄16" (5 mm), 1⁄4" (6 mm), 3⁄8" (10 mm)
PART NO.: 150.0009, 150.0010, 150.0011, 150.0012
MAXIMUM WIRE SIZE: #20 AWG (0.8 mm), #17 AWG (1.2 mm), #14 AWG (1.7 mm), #12 AWG (2.0 mm)
All compatible accessories
-
Core rotators
Rotator for JV75
-
Core clamp
Pneumatic Core Clamp
