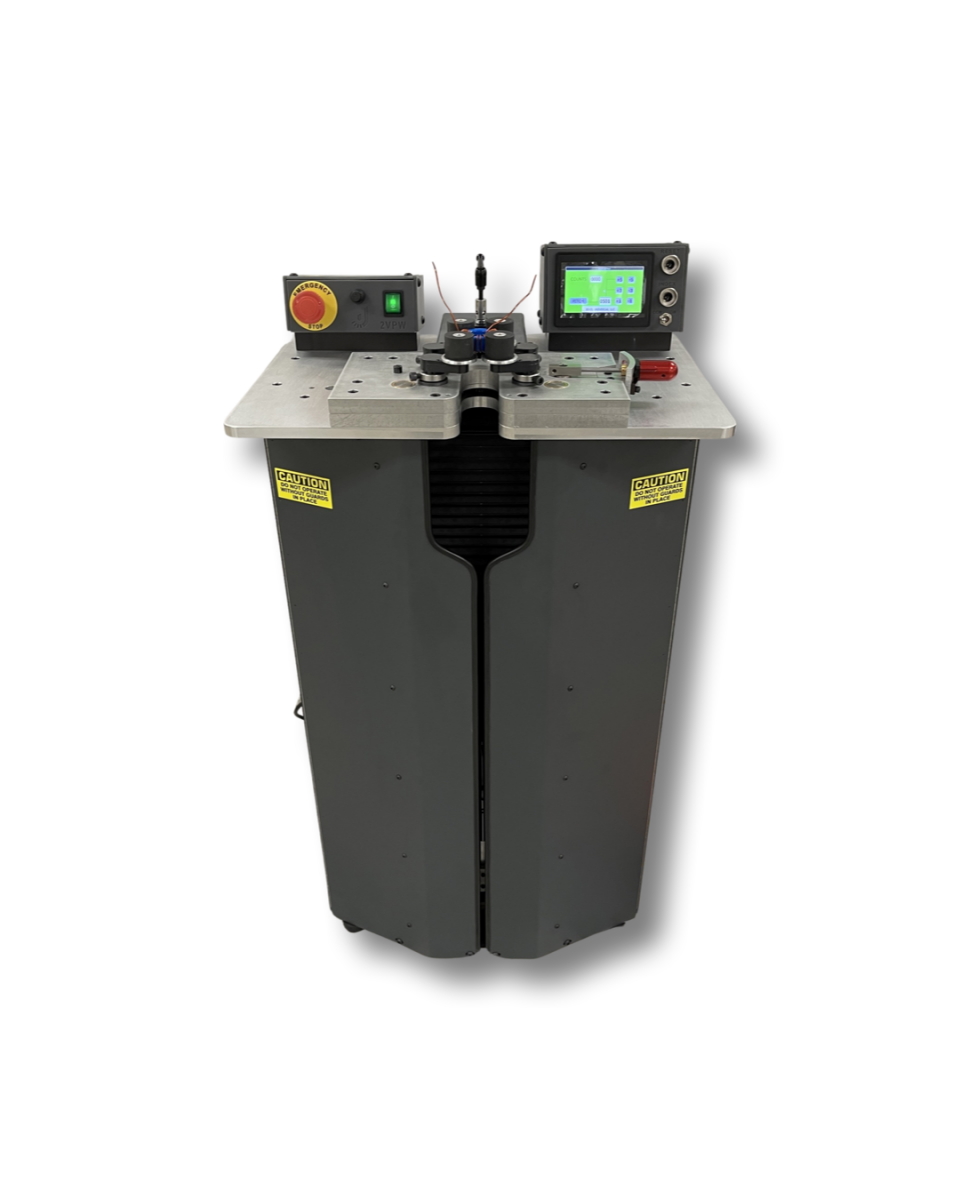

The 2VPW is the first and only Pull Winder on the market operated by an electric motor. No more noisy pneumatic operations. No more messy oil leaks. The 2VPW offers the most quiet, smooth and clean performance from any pull winder available today.
Automatic core rotation with 4 driven rollers out performs the strength of the normal 2-roller drive systems offered from other suppliers. Winding pitch is fully adjustable using electronic potentiometer setting. The 2VPW is the only pull winder available that offers CW or CCW core rotation direction with just a flip of a switch.
If safety is an issue, no need to worry. The 2VPW uses a fiber optic light curtain that assures that the machine will not function when the operator's hand is removing wire from the hook.
Maximum Wire Size: #12 AWG (2.10 mm)
Minimum Wire Size: #30 AWG (0.25 mm)
Bifilar Winding: Up to and including #14 AWG (1.60 mm)
Maximum Finished Coil O.D.: 2.625" (66.6 mm)
Minimum Finished Coil O.D.: 1.000" (25.4 mm)
Minimum Finished Coil HT.: 2.000" (50.8 mm)
Power Stroke Length: 24 inch (610 mm)
Power Requirement: 110-120 V
