Specifications/Capabilities
Maximum Coil O.D.: 1.125" (28.58 mm)
Minimum Coil O.D.: 0.218" (5.53 mm)
Minimum Coil I.D.: 0.055" (1.39 mm)
Max. Coil Ht.: 0.75" (19.0 mm)
Wire Size: #30 - #50 AWG (0.25 mm - 0.025 mm)

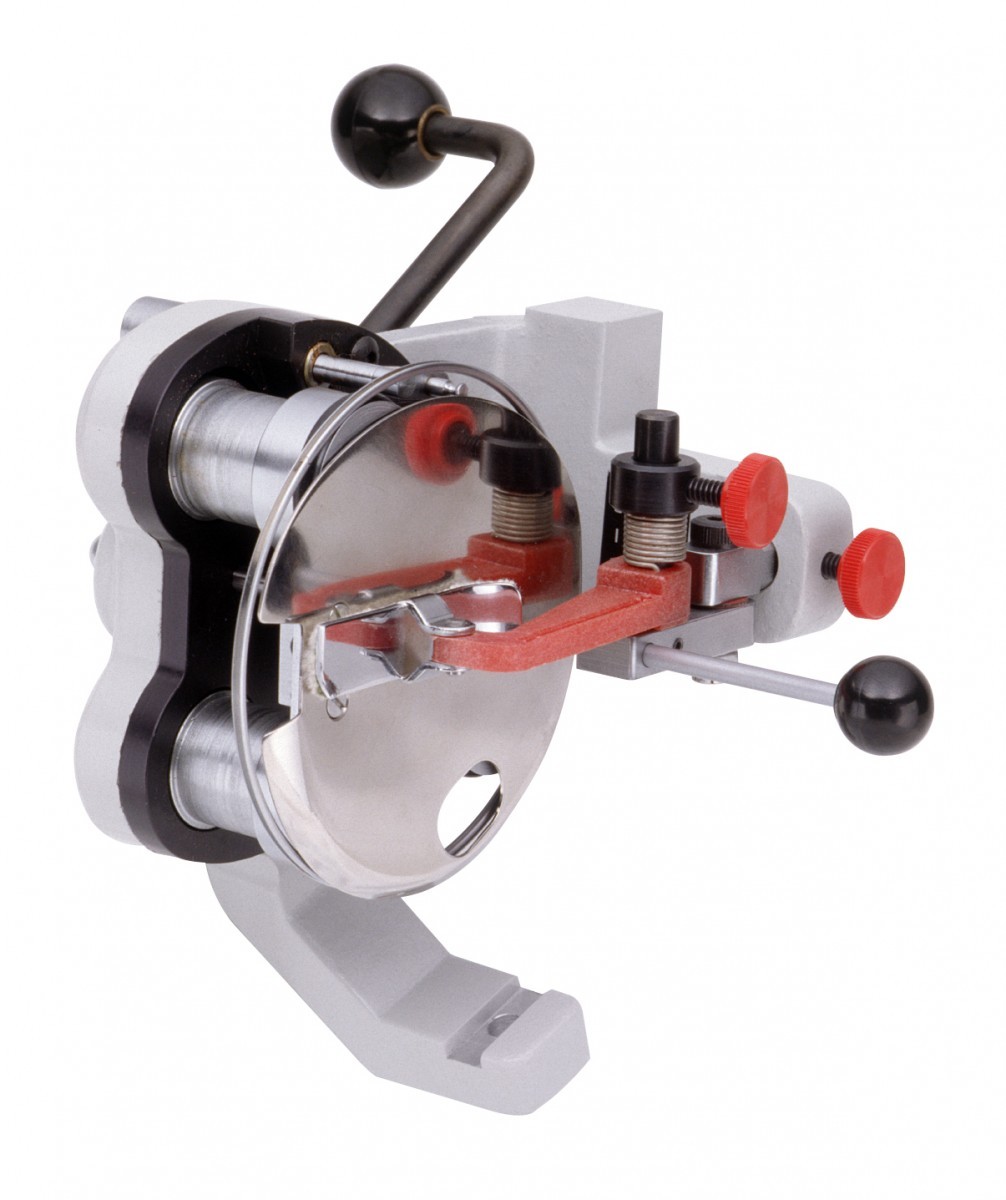

#2 Winding Head Capacity Charts
Maximum Coil O.D.: 1.125" (28.58 mm)
Minimum Coil O.D.: 0.218" (5.53 mm)
Minimum Coil I.D.: 0.055" (1.39 mm)
Max. Coil Ht.: 0.75" (19.0 mm)
Wire Size: #30 - #50 AWG (0.25 mm - 0.025 mm)
#2 Winding Head Capacity Charts
