Model SMC-1SD

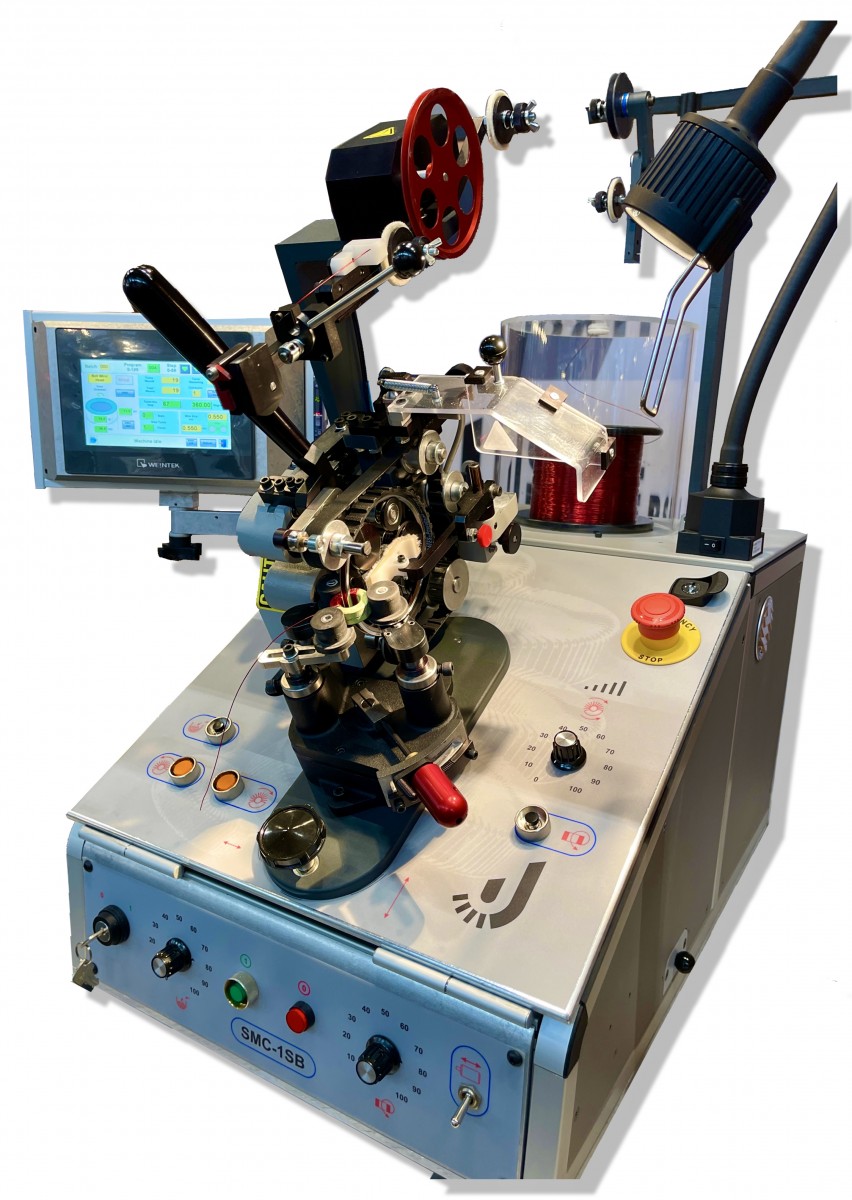

Microprocessor Controlled Toroidal Winding Machine with Windows Software
Jovil Universal is proud to present the model SMC-1, from the SMC line of toroidal winding machines. The model SMC-1 offers the ease of programming and the technical advances found only in Jovil toroidal winding machines. It includes a stepper motor core rotation control with teach-in functions. Just dial the correct core rotational speed and store it into the programmer for ease of recall. The counter has been specifically designed to make the programming and operation of the SMC-1 simple. It has a 99 program storage capacity with multi sub-levels per program. All JV100BE-2 and Universal 4.5LS and 6LS winding heads will readily fit the SMC-1 base.
Principal and optional features
- Separate speed controls for loading and winding
- Programmable stepper motor driven core rotation in either direction with minimum backlash
- Programmable wire spacing, from coarse to fine micro-step resolution
- Floating drive for centering core during winding – single knob control
- Electronic linear pick-up for loading (feet or meters)
- Controls for operating taping head
- Solid state microprocessor count controller – total of 99 programmable preset levels – LED readout – built-in fiber optic turns sensor – program storage – production batch counter – utmost accuracy, stability and reliability
- RS-232 with interface software
- Quick change winding heads, core rotators and core clamps
- Automatic core index function
- Push button and/or footswitch control
Specifications/Capabilities
Maximum Wire Size: #16 AWG (1.40 mm)
Minimum Wire Size: #46 AWG (0.05 mm)
Maximum Coil O.D.: 4.00" (101.6 mm)
Minimum Coil O.D.: 0.187" (4.70 mm)
Minimum Coil I.D.: 0.040" (1.00 mm)
Maximum Coil Height: 2.00" (50.8 mm)
Winding Speeds: Variable to 2000 TPM
Wire Spacing: Programmable variable
Segment Winding: Programmable with controller
Progressive Winding: Programmable with controller
Deceleration Control: Programmable with controller
Acceleration Control: Programmable with controller
Shuttle Head Motor: 1/2 HP-7600 RPM-DC with dynamic braking
Core Rotation Motor: Hybrid step motor
Power Requirement: 120 V or 220 V, 50–60 cycles
Crated Dimensions: 37" x 37" x 42", (94 x 94 x 107 cm)
Crated Weight: 200 lb (90 kg)
