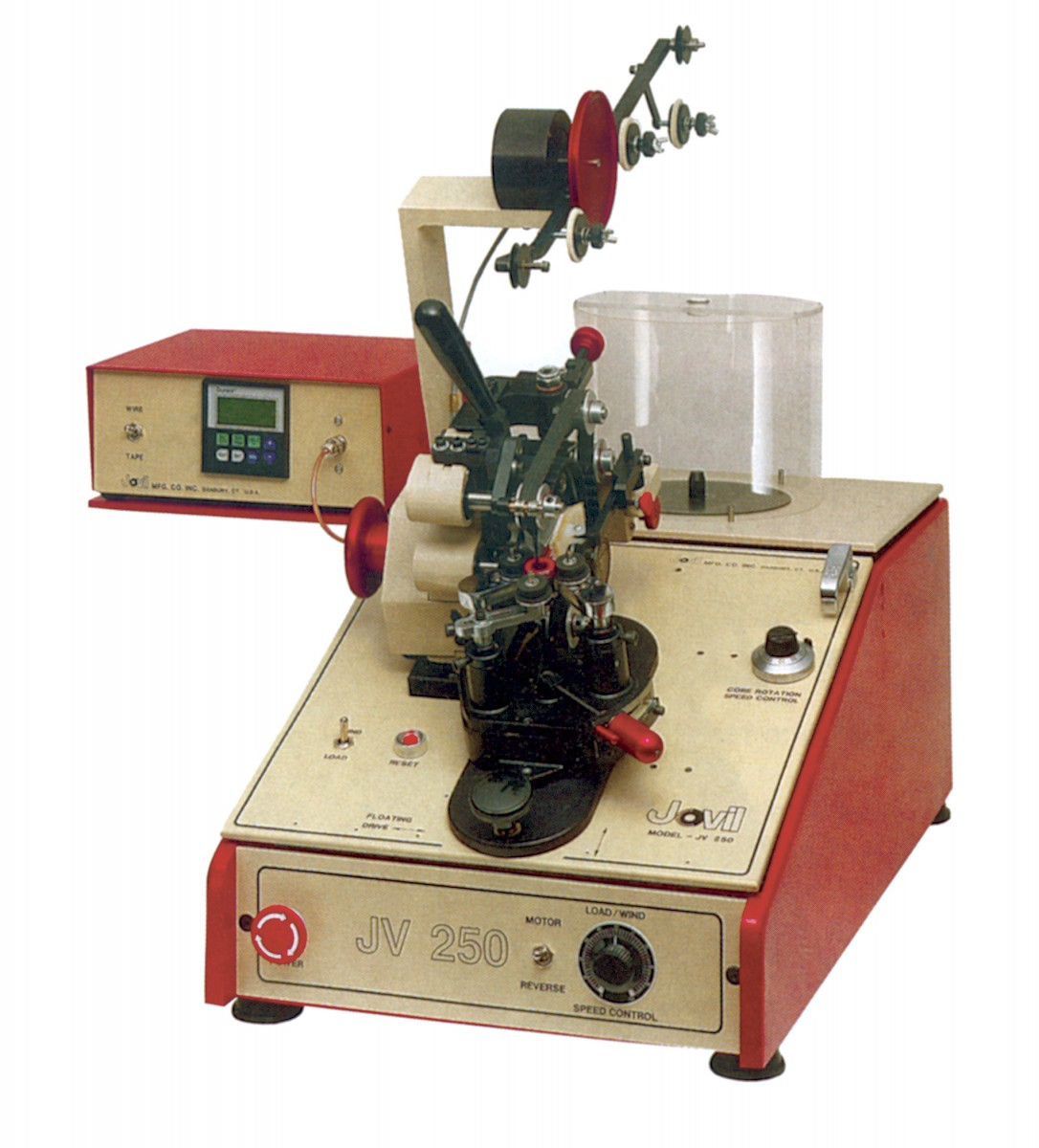

By eliminating some options not needed for the winding of certain applications, Jovil has developed a low-cost machine while retaining the same quality construction as in our microprocessor controlled JV100BE-2.
The two main features eliminated are:
1)the microprocessor
2)the ability to rotate the core in the C.W. direction
The JV250 is available with a choice of two different counters:
A)JV45: dual preset with no deceleration
B)LGM: four preset with deceleration
The JV250 base will accept all winding heads, core rotators, taping heads and shuttles currently used on the model JV100BE-2 and listed on pages 4 and 5 of this catalog.
Specifications/Capabilities
Maximum Wire Size: #16 AWG (1.4 mm)
Minimum Wire Size: #46 AWG (0.05 mm)
Maximum Coil O.D.: 4.0" (101.6 mm)
Minimum Coil O.D.: 0.187" (4.7 mm)
Minimum Coil I.D.: 0.040" (1.0 mm)
Maximum Coil Height: 2.0" (50.8 mm)
Winding Speeds: Variable to 2000 TPM
Wire Spacing: Automatic variable
Deceleration Control: Only with LGM type counter
Motor: 1/2 HP – 7600 RPM-DC – with dynamic braking
Power Requirement: 110-120 V, 50-60 cycles (220 V optional)
Crated Dimensions: 37" x 37" x 42" (94 x 94 x 107 cm)
Crated Weight: 200 lbs (90 kg)
All compatible accessories
-
Random winding slider heads
#1 Winding Head
-
Random winding slider heads
#2 Winding Head
-
Random winding slider heads
#3 Winding Head
-
Random winding slider heads
#4 Winding Head
-
Random winding slider heads
#5 Winding Head
-
Random winding slider heads
#7 Winding Head
-
Layer winding heads
2U Layer Head
-
Layer winding heads
4U Standard Layer
Head
-
Layer winding heads
4U Light Layer Head
-
Layer winding heads
6U Standard Layer
Head
-
Layer winding heads
6U Light Layer Head
-
Layer winding heads
H6U Heavy Layer Head
