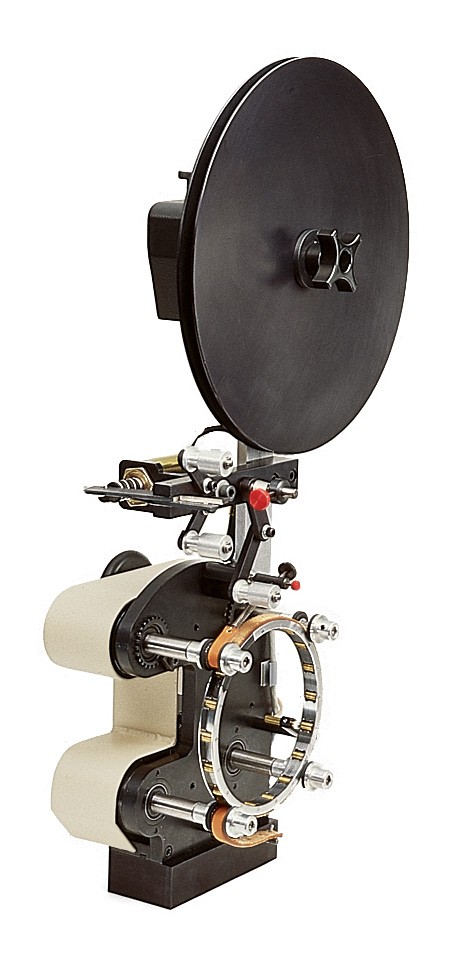

Toroidal Taping and Shielding Head fits models JV100BE and JV250.
Principal and optional features
- Interchangeable magazines with removable sector to accommodate tape widths of 1/4", 5/16", and 3/8" (6 mm, 8 mm, 10 mm)
- No need to change magazine drive pulleys when changing from one size magazine to another
- Counter controls measure of tape supply to magazine and number of wraps on core
- Automatic tape cut-off from spool supply
- Dereeler handles up to 12" diameter tape spools
- Core rotation speed control allows tape overlap on core to be adjusted while taping Footswitch controlled
- Will tape all non-adhesive materials (mylar, glass, copper shielding, etc.)
Specifications/Capabilities
Maximum coil O.D.: 4.0" (101.6 mm)
Minimum coil O.D.: 0.750" (19.0 mm)
Minimum coil I.D.: 0.625" (16.0 mm)
Maximum coil height: 2.0" (50.8 mm)
