Principal and optional features
- Obsoletes need to tie up a winding machine when taping (dedicated for taping)

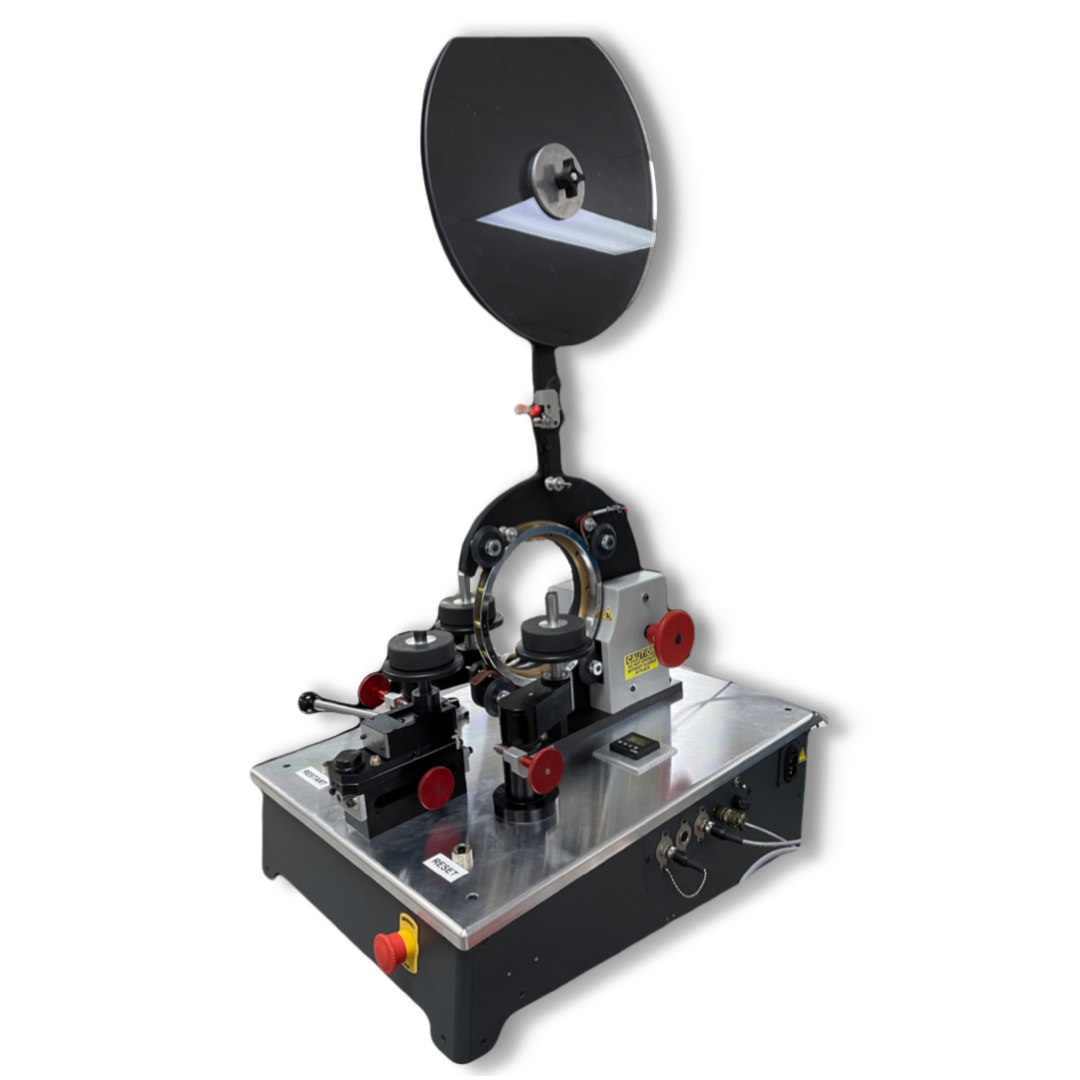

- 9" and 14" diameter taping heads fit readily to the JV225 base
- 5 minute changeover of heads
- Same roller table used for all taping heads
- Interchangeable magazines to accommodate standard tape widths
- For applying a variety of non-adhesive tapes on toroidal coil applications
- Mylar, polyester, paper, varnished silk, fiberglass, cloth, copper shielding, etc.
- Simple dual preset counter controls measure of tape supply and number of wraps onto core
- Automatic cut-off from spool
- Dereeler handles up to 12" diameter tape spools
- Pitch for tape overlap fully adjustable
- Variable speed footpedal controlled
Specifications/Capabilities
Maximum Coil O.D.: 10.0" (254.0 mm)
Minimum Coil O.D.: 1.5" (38.0 mm)
Minimum Coil I.D.: 0.650" (16.50 mm)
Maximum Coil Height: 3.5" (88.9 mm)
Taping Speeds: Variable to 200 wraps per minute
Tape Overlap: Automatic variable
Counter: Dual preset electronic
Core Rotation: Automatic in counter-clockwise direction only
Motor Control: Variable speed footpedal
Motor: 1/2 HP – 1750 RPM-DC
Power Requirement: 110-120 V, 50-60 cycles (220 V optional)
Crated Rimensions: 37" x 37" x 42" (94 x 94 x 107 cm)
Crated Weight: 250 lbs (114 kg)
All compatible accessories
-
Taping and shielding heads open gear design
14" Head for SMC-2, JV200 and JV225
-
Taping and shielding heads open gear design
9" Taping Head for SMC-2, JV200 and JV225
-
Taping and shielding heads open gear design
9" SI Head for SMC-2, JV200 and JV225
-
Taping and shielding heads solid gear design
12" SG Heads for SMC-2, JV200 and JV225
-
Taping and shielding heads solid gear design
9" SG Heads for SMC-2, JV200 and JV225
