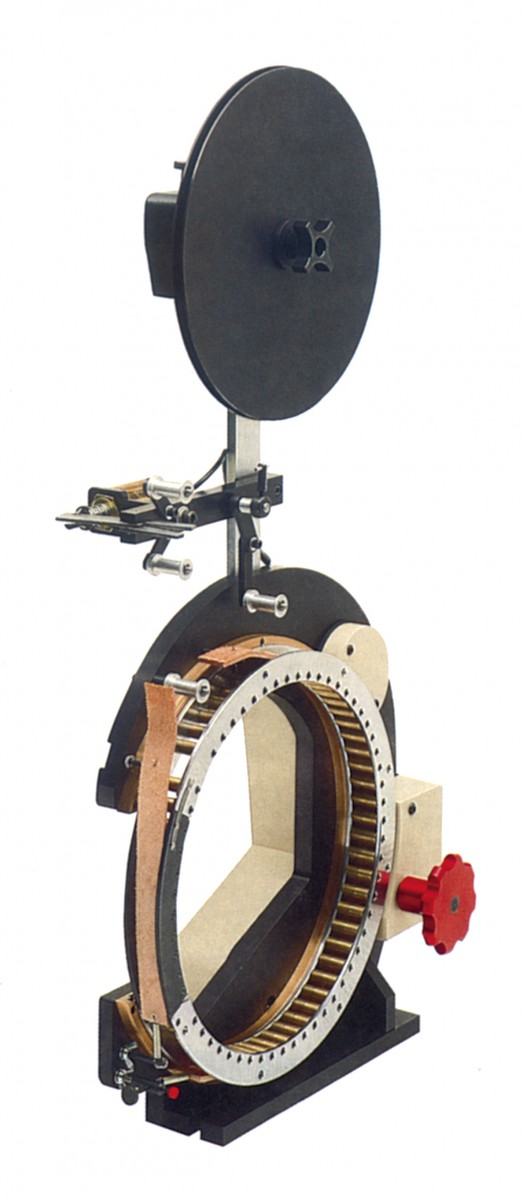

These taping and shielding heads are used for applying a variety of non-adhesive tapes such as mylar, polyester, paper, varnished silk, fiber glass, cloth, copper shielding, etc. on toroidal coil applications. Gear driven, interchangeable magazines for various widths of tape. Automatic tape cut-off from spool supply. Electronic counter measures supply of tape to magazine and wraps of tape onto core. Separate speed controls for loading and wrapping. Fully adjustable tape overlap on core.

Specifications/Capabilities

Maximum Coil O.D.: 10.0" (254.0 mm)

Minimum Coil O.D.: 3.0" (76.2 mm)

Minimum Coil I.D.: 2.0" (50.8 mm)

Maximum Coil Height: 3.5" (88.9 mm)

Tape Widths: 5/16", 3/8", 1/2", 5/8", 3/4", 1"

(8 mm, 10 mm, 12 mm, 15 mm, 19 mm, 25 mm)
