Principal and optional features

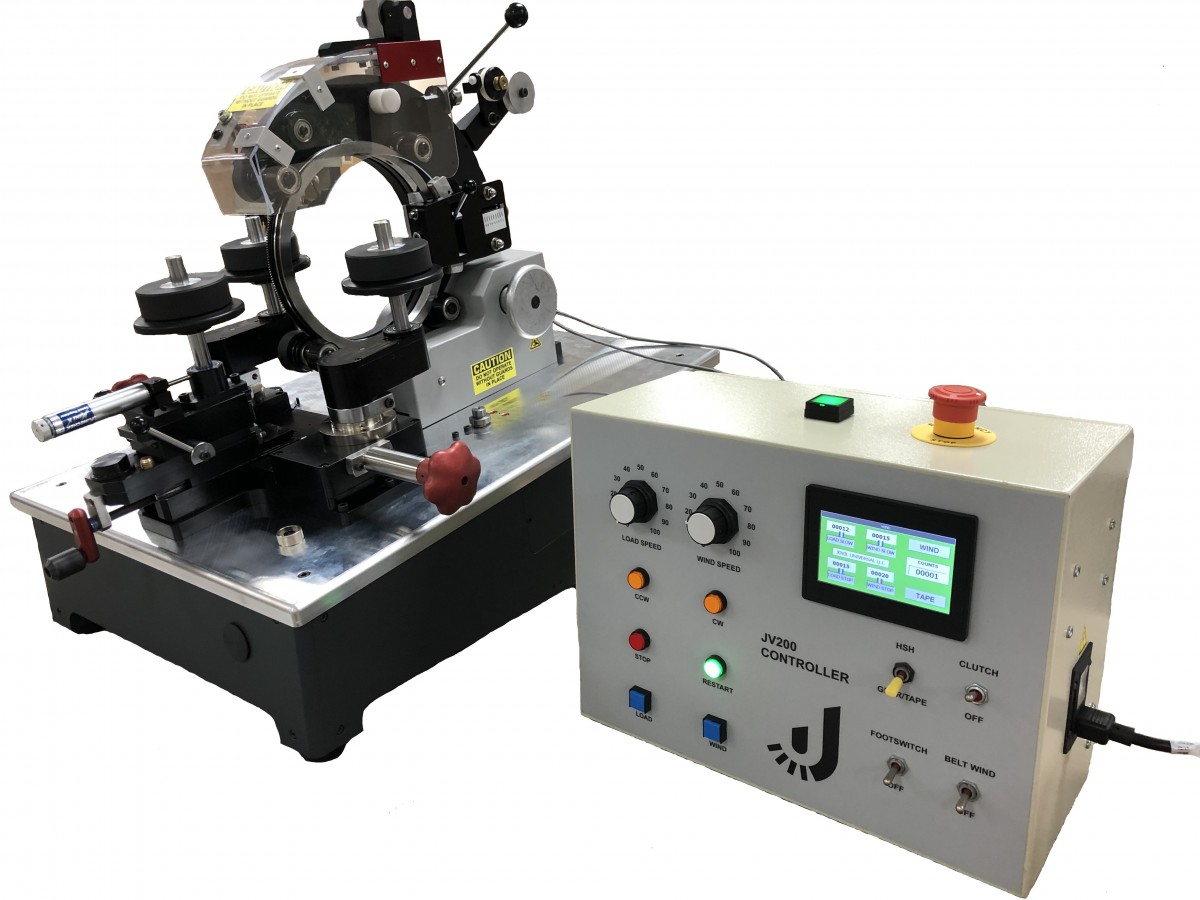

  • Quick change heads for winding and taping (5 minute change-over)
  • Choice of two interchangeable core rotators
  • Separate control console unit, housing complete machine controls for both winding and taping – readily adjustable for operator convenience
  • Variable speed control with footswitch stop and start- bypass option
  • Choice of standard dual preset electronic counter or 99 level microprocessor count control for multi-preset capability
  • Vernier dial core rotation speed control (pitch) – may be changed with machine running
  • Core rotators with individual adjustment of two drive rollers by means of worm and gear assembly – quick core removal and insertion by means of lever
  • Core rotation direction reversed automatically or by push button switches on control console
  • Automatic core index via push button
  • Wide selection of magazines available for all heads


Maximum Wire Size: #8 AWG (3.25 mm)

Minimum Wire Size: #38 AWG (0.1 mm)

Maximum Coil O.D.: 10.0" (254.0 mm)

Minimum Coil O.D.: 1.5" (38.0 mm)

Minimum Coil I.D.: 0.500" (12.7 mm)

Maximum Coil Height: 3.5" (88.9 mm)

Winding Speeds: Variable to 1000 TPM

Wire Spacing: Automatic variable

Segment Winding: Automatic reversal of core

Progressive Winding: Automatic with microprocessor

Deceleration Control: Automatic with microprocessor

Acceleration Control: Automatic with microprocessor

Motor: 1/2 HP – 1725 RPM-DC

Power Requirement: 110 -120 V, 50-60 cycles (220 V optional)

Crated Dimensions: 37" x 37" x 42" (94 x 94 x 107 cm)

Crated Weight: 300 lbs (136 kg)
