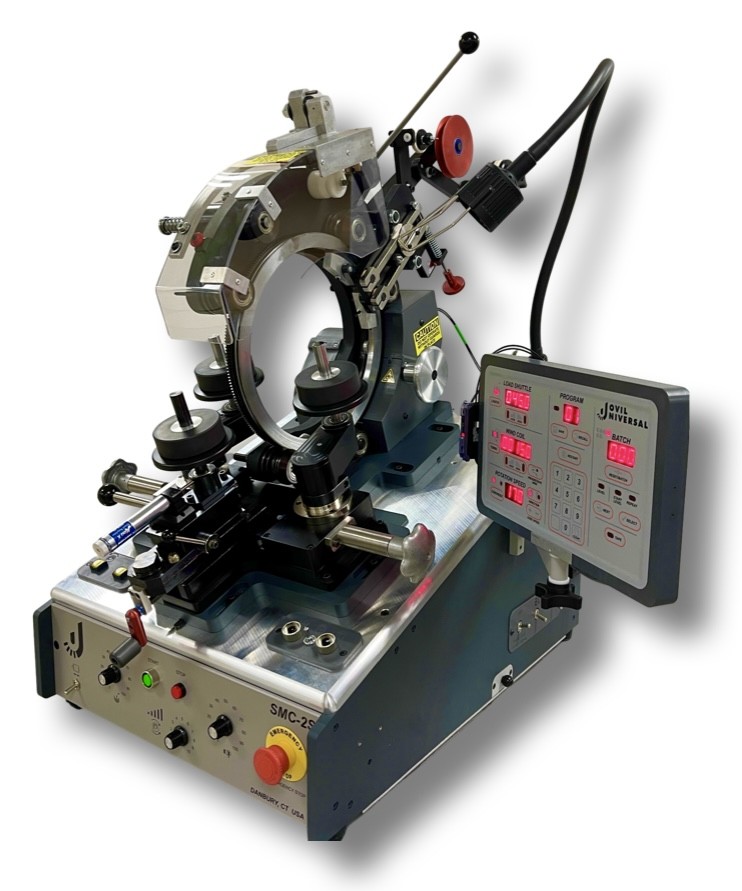

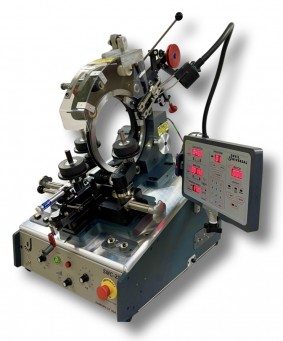

Model SMC-2S
Microprocessor Controlled Toroidal Winding Machine with Windows Software
Jovil is proud to introduce the newest member of the SMC line of toroidal coil winding machines – the new Model SMC-2. With the ability to accept over 30 types of winding heads, the new Model SMC-2 toroidal winding machine offers the utmost in versatility. Included is stepper motor rotation control with teach in core pitch functions. All Universal LS, Jovil JV100 and Jovil JV200 accessories and winding heads will fit readily to the SMC-2 base giving
winding parameters never before available from one single machine. Core outside diameters from 0.200 to 12.000 inches (5.08 to 304.8 mm). Wire range from #46 AWG to #8 AWG (0.05 mm to 3.25 mm). It has a 99 program storage capacity. All functions, including winding pitch, are fully programmable with RS-232 for PC downloading.
Principal and optional features
- Separate speed controls for loading and winding
- Programmable stepper motor driven core rotation in either direction with minimum backlash
- Programmable wire spacing, from coarse to fine micro-step resolution
- X-Y positioning for proper head to rotator alignment
- Electronic linear pick-up for loading (feet or meters)
- Tape head controls
- Solid state microprocessor count controller – total of 99 programmable presets – LED readout – built-in fiber optic turns sensor – program storage – production batch counter – utmost accuracy, stability and reliabilityRS-232 with interface software
- Quick change winding heads, core rotators and core clamps
- Automatic core index function
- Push button, on-off footswitch or variable footpedal operation
Specifications/Capabilities
Maximum Wire Size: #8 AWG (3.25 mm)
Minimum Wire Size: #46 AWG (0.05 mm)
Maximum Coil O.D.: 12.00" (304.8 mm)
Minimum Coil O.D.: 0.200" (5.08 mm)
Minimum Coil I.D.: 0.048" (1.22 mm)
Maximum Coil Height: 3.500" (88.9 mm)
Winding Speeds: Variable to 2000 TPM
Wire Spacing: Programmable variable
Segment Winding: Programmable
Progressive Winding: Programmable with controller
Deceleration Control: Programmable with controller
Acceleration Control: Programmable with controller
Shuttle Head Motor: 3/4 HP 1725 RPM
Core Rotation Motor: Hybrid step motor
Power Requirement: 120 V or 220 V, 50 - 60 cycles
Crated Dimensions: 37" x 37" x 42" (94 x 94 x 107 cm)
Crated Weight: 300 lbs (136 kg)
All compatible accessories
-
Layer winding gear heads
12" Gear Head for SMC-2 and JV200
-
Layer winding gear heads
9" Gear Head for SMC-2 and JV200
-
9" combination slider/belt head
With Slider System
-
9" combination slider/belt head
With Belt System
-
Taping and shielding heads open gear design
14" Head for SMC-2, JV200 and JV225
-
Taping and shielding heads open gear design
9" Taping Head for SMC-2, JV200 and JV225
-
Taping and shielding heads open gear design
9" SI Head for SMC-2, JV200 and JV225
-
Taping and shielding heads solid gear design
12" SG Heads for SMC-2, JV200 and JV225
-
Taping and shielding heads solid gear design
9" SG Heads for SMC-2, JV200 and JV225
-
Core rotator assemblies
Large Core Rotator
-
Core rotator assemblies
Small Core Rotator
